Product Name: Rail Fastening System Application: Railway
Type: E Type, Nabla Type, SKL Type, KPO Type, Etc. Sample: Available
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet

44 - 48HRC Hardness E Clip Vossloh Fastening Systems Bitumen Dacromet:

E Clip Rail Fastening System

Technical Parameters

Part name

Type

Material

Finish

Remark

E clip

Dia. 16mmDia. 18mmDia. 20mm

60Si2MnA, 60Si2CrA,55SiMn

Plain oiled, color painting, or the other custom finish

Hardness: 44-48HRC
Toe Load: 500-700kgf for Dia.16mm
750-900kgf for Dia.18mm
1100-1400kgf for Dia.20mm
Fatigue life:3 millions cycles without breaking for Dia.18mm, 5 millions cycles without breaking for Dia.20mm
Standard: DIN17221, BS970, GB/T1222

Shoulder

UIC54,UIC60, 115RE,50kg rail, 60kg rail,BS80lbs,BS100lbs

QT500-7 QT450-10

Plain oiled, color painting

Different designs are available.

Rail pad

UIC54,UIC60, BS80lbs,BS100lbs, in ordered size

HDPE, EVA, or rubber

Black or other colors

Different designs are available.

Insulator

UIC54,UIC60, 50kg rail, 60kg rail,BS80lbs,BS100lbs, and size as ordered

Reinforced Nylon 66 (PA66)

Black, blue, yellow, green or other colors

Different designs are available.

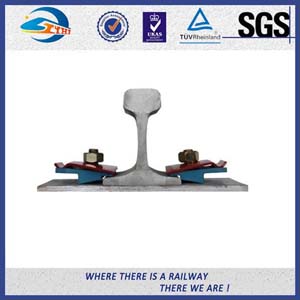

Nabla Clip Rail Fastening System

Technical Parameters

Part name

Type

Material

Finish

Remark

Nabla clip

Thickness 4mm or 4.5mm

60Si2MnA, 60Si2CrA

Plain oiled, red color painting, or the other required by customers

Hardness: 42-47HRCFatigue
life: 3 millions cycles without breaking
Standard: DIN17221, GB/T1222

Insulator

UIC54, UIC60, S49 rails

Reinforced Nylon 66 (PA66)

Black, blue, yellow, green or other colors

Different designs are available.

Double end screw spike

UIC54, UIC60, 50kg rail, 60kg rail

Grade 5.6: 35#

Plain oiled, black oxide, galvanized, hot dip galvanized

Bending at 30 degree without crack.

Special spring washer

18.25×34×78mm

ML08Al

Plain oiled, black oxide, galvanized, hot dip galvanized

For protecting the thread of the double end screw spike

Hex nut

As ordered

Grade 5: 35#

Plain oiled, black oxide, galvanized, hot dip galvanized

Standard: DIN985

Plain washer

As ordered

Q235

Plain oiled, black oxide, galvanized, hot dip galvanized

Standard: DIN125

SKL Clip Rail Fastening System

Technical Parameters

Part name

Type

Material

Finish

Remark

SKL14 tension clip

Dia. 13mm

60Si2CrA, 38Si7

Plain oiled, color painting, or the other required ones.

Hardness: 42-47HRC
Fatigue test: When the clip spring deflection reaches 9.1mm and the swing deflection is 1.42mm, the fatigue life will be 5 millions cycles without breaking.
Standard: DIN17221, GB/T1222

Ss35 screw spike

M24×150mm
M24 ×160mm
M24×180mm

Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized

Standard: ISO898-1, UIC864-1 and NF F500-50

Plain washer

Uls7

Q235

Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized

Standard: EN10025, EN10139

Plastic dowel

For different sizes of screw spike

HDPE, Reinforced Nylon 66 (PA66)

Black, blue, yellow, green or other color

For insert into concrete sleeper

Guide plate

UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered

Reinforced Nylon 66 (PA66)

Black, blue, yellow, green or other color

Different designs are available.

Rail pad

UIC54,UIC60, and size as ordered

EVA, or rubber

Black, blue, yellow, green or other color

Different designs are available.

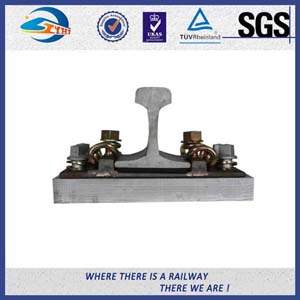

KPO Clamp Rail Fastening System



Technical Parameters

Part name

Type

Material

Finish

Remark

KPO clip

KPO3, KPO6, KPO9

Q235

Plain oiled

Standard: DIN5906

HS bolt

HS26, HS32

Grade4.6: Q235
Grade5.6: 35#
Grade8.8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized

Diameter: 22mm or 24mm.
Length: 55mm, 65mm, 75mm, 90mm
Standard: UIC864-2

Hex nut

As ordered

Grade 5: 35#
Grade 8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized

Standard: DIN985

Double coil spring washer

As ordered

65Mn

Plain oiled, black oxide, galvanized, hot dip galvanized

Standard: UIC864-3

screw spike

M24×150mm
M24 ×160mm
M24 ×180mm
or other length as ordered

Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#

Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized.

Standard: ISO898-1, UIC864-1 and NF F500-50

Base plate

UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size

Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel

Plain oiled

Standard: UIC864-6

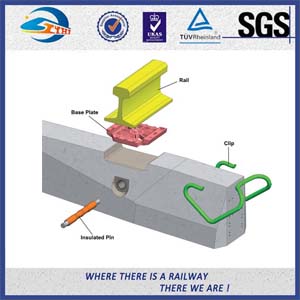

Fist Rail Fastening System

The fist rail fastening system is firstly developed in Sweden. This rail fastening system is widely used in the railroad in South Africa, Zimbabwe, Botswana, Swaziland and Namibia. In addition, the railroad fastener is extensively employed in South America and Australia.

The fist rail fastening system comprises of spring steel clip, rail pad, and insulated retaining pin. The components for the rail fastening device are manufactured according to ISO 9001-2008 standard.

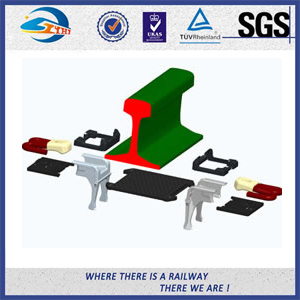

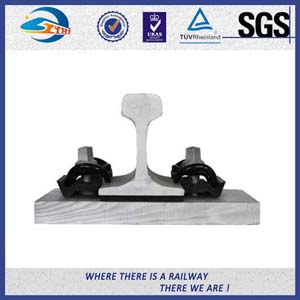

Fast Clip Rail Fastening System

The demand for fast clip rail fastening system is growing faster than other railroad fastener in the industry. It is generally pre-assembled in the factory of sleeper manufacturer. The high-safety rail fastener is a switch on-switch off system developed to meet the growing demand on fast clip rail fastening system. Our fast clip rail fastener is capable of satisfying user requirement on rapid installation, low installation cost, and low maintenance cost.

Both the clips and the toe insulators are installed at the parked position, where the side post insulators and pads are mechanically held in place. All the components are transported to the site. The installation of the fast clip rail fastening system is quite easy and can be conducted in different ways. The wide applications make this product quite popular.
