Railway Fastenings din rail mounting clips / Fastening plate
- Product Number
- Rail Clip
- Quantity：
- 10000
- Rrice：
- ￥1000.00
- Time：
- 2015/5/22 11:52:18
Detailed Product Description
|
Material: |
Q235 |
Surface: |
Plain, Oiled, Oxide Black, Wax, HDG |
|
Sample: |
Available |
Customization: |
Acceptable |
|
Market: |
Africa |
Railway Fastenings din rail mounting clips / Fastening plate
Specification:
|
Item Name |
Railway Rail Clamp |
|
Usage |
Rail Fastening |
|
Material |
Iron Steel, Cast Iron |
|
Surface Treatment |
Bluing, Plain Oiling, Color Painting, etc |
|
Documents with Delivery |
Mechanical Properties, Chemical Composition, All Sizes Reports |
|
Standard |
ISO, SGS, TUV |
Application:
|
Brand |
SUYU |
|||
|
Name |
Fastening plate |
|
||
|
Type |
KPO3, KPO6, KPO9, Or the type by customers’ drawings |
|
||
|
Material |
Q235-forging |
ZG35-cast steel |
QT500-7-cast iron |
|
|
Chemical composition(%) |
C:0.12-0.20, Mn:0.30-0.70, Si:≤0.3, P:≤0.045, S:≤0.045 |
C: ≤0.4, Mn:≤0.9, Si: ≤0.5, P:≤0.04, S:≤0.04 |
C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 |
|
|
Surface |
plain (oiled) |
|
||
|
Standard refers |
DIN5906 |
|
||

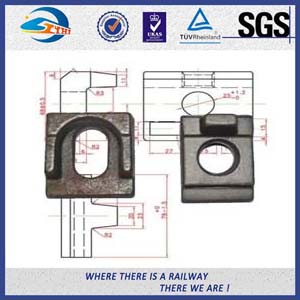

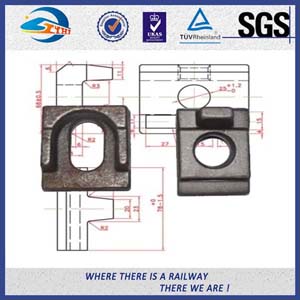

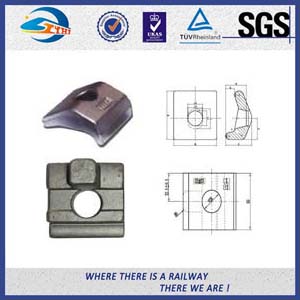

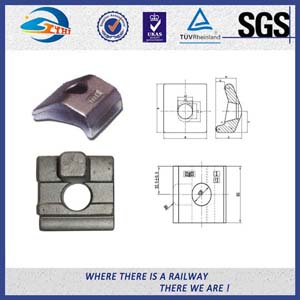

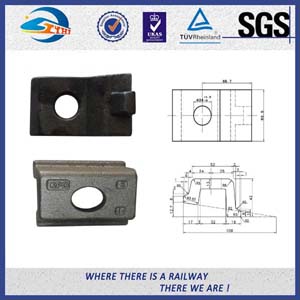

Drawing:
KPO Clip, Crane Clip 21/050AN/BN And Crane Clip 22/130 AN/BN:
Package:
25Kg Cartons or woven bags in wooden pallet,
36bags/pallets,
24pallets/container ,
or according to customers' requirement
SUYU specialized in producing rail fastening , rail clamps are our main products , below is some of our main products .
1.The clip is a boltable, adjustable, self-blocking clip with high clip strength. The adjustability is secured by means of the square taper washer. There are types for M16, M20, M24 fastening material. Like the FM clip, the clip is especially applied with crane tracks on a steel girder or on a concrete foundation with a steel sole plate. The height of the clip is variable, so that there is a suitable clip for virtually every rail type.
2. The gantrail clip is an adjustable, self-blocking clip with a rubber nose and with a modest but permanent pre-stress strength. This clip is available in various types and models. By varying the height of the rubber nose there is a suitable clip for every rail type.

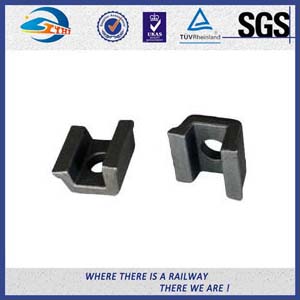

3. The KPO clip is a boltable clip, with high clip strength. This clip is applied in combination with ribbed tie plates and T-headed bolts.
As a leading manufacturer of rail fastening in China , SUYU also can produce many other railway fasteners , such as track bolt . Sleeper screw . track spike .tie plate .rail clips ,elastic rail clip .SKL tension clamp .rail shoulder and so on .
Sticking to the “quality first” policy, SUYU pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products. We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.
