Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs

Product Number
Rail Anchor
Quantity:
10000
Rrice:
¥1000.00
Time:
2015/5/22 11:58:45
Share: Copy More



Detailed Product Description

Product Name:

Weld-on Shoulder

Application:

Railway

Grade:

4.6, 5.6, 8.8, 10.9

Material:

QT400-15

Surface:

Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet

Standard:

ISO/SGS/TUV

Length:

Acc To Drawings

Warranty:

3 Years

Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs

Brand

Rail shoulder /Casting Shoulder/Weld-on Shoulder

Type

For rail UIC54, UIC60, 115RE,50kg rail, 60kg rail,BS80lbs, BS100lbs

 Or the type by customers’ drawings

Material

QT500-7 (GGG50)

QT450-10(GGG45)

QT400-15(GGG40)

Chemical composition(%)

C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025

C:3.40-3.90,

Mn:0.2-0.5, Si:2.70-3.00, ,P:≤0.07, S:≤0.03

C:3.5-3.60,

Mn: ≤0.5,

Si:3.00-3.20 ,

P:≤0.07, S:≤0.02

Surface

plain (oiled)



SUYU specialize in producing rail fastening , rail shoulders are our main products , they are produced both in casting and forging , below is some of our main products .

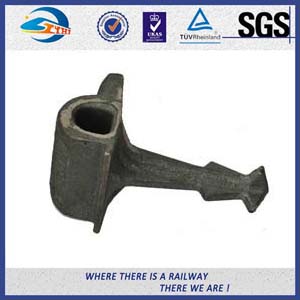

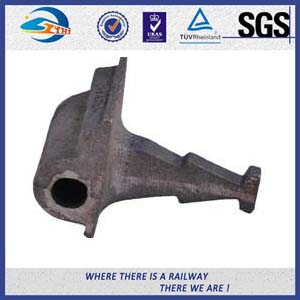

1. Casting shoulders are pressed in concrete sleeper and assembly with E clip in order to fasten the rail , the normal material we use is casting iron , the mechanical property and chemical composition are below :

Material

Tensile strength(Mpa)

Yield strength(Mpa)

Elongation(%)

QT400-15(GGG40)

400

250

15

QT450-10(GGG45)

450

310

10

QT500-7 (GGG50)

500

320

7

C

Si

Mn

P

S

QT400-15

3.6-.36

3.0-3.2

0.5

0.07

0.02

Qt450-10

3.4-3.9

3.7-3.0

0.5

0.07

0.03

QT500-7

3.4-3.8

2.5-2.9

0.6

0.08

0.025

2. Rail shoulders are produced by hot forging , which used together with clip bolt and special rail clip to fix the rail , the material can be low carbon steel and mid carbon steel according to our customers' requirement .

3. Weld-on shoulder is used for the typical position of rail , it is welded on flat steel plate instead of the standard tie plate , which produced according to AREA standard .

As a leading manufacturer of rail fastening in China , SUYU also can produce many other railway fasteners , such as track bolt . Sleeper screw . rail anchor .rail joint bar . tie plate .rail clips ,elastic rail clip .SKL tension clamp and so on .

Sticking to the “quality first” policy, SUYU pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products.  We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.

As a leading manufacturer of rail fastening in China , SUYU also can produce many other railway fasteners , such as track bolt . Sleeper screw . rail anchor .rail joint bar . tie plate .rail clips ,.rail shoulder and so on .

Sticking to the “quality first” policy, SUYU pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products.  We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.
