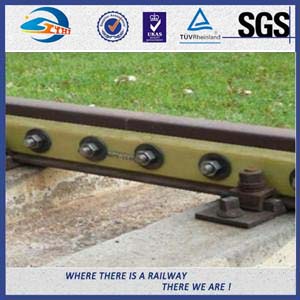

Track Railway Fish Plate Plain / Oxide Black for Standard Steel Rail
- Product Number
- Railway Fish Plate
- Quantity：
- 100000
- Rrice：
- ￥0.00
- Time：
- 2015/5/22 13:46:12
Detailed Product Description
|
Product Name: |
Joint Bar |
Application: |
Railway / Track / Railroad |
|
Type: |
QU Series Rail |
Material: |
45#, 50# |
|
Length: |
4 Hole |
Surface: |
Plain / Oxide Black / Znic Plated |
Track Railway Fish Plate Plain / Oxide Black for Standard Steel Rail
Alias:
Fishplate
Fish plate
Rail Fish plate
Bar
Rail Bar
Specifications:
We deal in all types of fish plate, also known as joint bar, splice bar and angle bar. We have in-house rolling, forging, machining, and drilling and punching facilities to ensure accurate rail fish plate size. We have the capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54, U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc. Our fish plates are manufactured to international standards according to BS, ASTM and DIN, among others.
Types:
4-Hole
6-Hole
Suitable Rail Model
QU series: QU70 / 80 /100 120
|
Model |
Head |
Height |
Bottom |
Web |
Weight |
Material |
Length |
|
mm |
mm |
mm |
mm |
kg/m |
m/pc |
||
|
QU70 |
70 |
120 |
120 |
28 |
52.8 |
U71Mn |
12 |
|
QU80 |
80 |
130 |
130 |
32 |
63.69 |
U71Mn |
12 |
|
QU100 |
100 |
150 |
150 |
38 |
88.96 |
U71Mn |
12 |
|
QU120 |
120 |
170 |
170 |
44 |
118.1 |
U71Mn |
12 |
Adhering to our quality first policy, SUYU pays great attention to quality control management on our rail fish plate. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail fish plates are of high quality and up to customers' requirements.
As a leading manufacturer of rail fastening based in China, SUYU also produces many other railway fasteners, such as track bolt, sleeper screw, track spike, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.
Similarity
|
Type |
Length/Diameter |
Weight(Kg) |
|
115RE |
4 hole- 24 ″ |
17.04 |
|
115RE |
6 hole -36 ″ |
25.56 |
|
132-136RE |
4hole-24 ″ |
17.75 |
|
132-136RE |
6hole-36 ″ |
26.63 |
|
UIC60 |
4 hole - 630/ ￠ 26 |
18.07 |
|
UIC60 |
4 hole-600/ ￠ 28 |
17.47 |
|
UIC60 |
4 hole - 630/ ￠ 25 |
18.1 |
|
UIC54 |
4hole |
14.34 |
|
UIC54 |
6hole- 800 |
19.94 |
|
BS80A |
4hole |
6.5 |
|
BS90A |
685.8 / ￠ 26 |
13.23 |
|
BS90A |
792.9/ ￠ 26 .2 |
15.34 |
|
90/91LB |
4 hole |
18.08 |
|
90/91LB |
6hole |
19.9 |
|
50Kg |
4hole |
14.3 |
|
50Kg |
6hole |
19.5 |
|
BS75R |
4hole |
6.56 |
|
BS60A |
4hole |
5.61 |
|
S49 |
4 hole |
9.71 |
Sale Rang
Rail fastening system
Dog spike / Screw spike
Bolt set
Elastic clamp
Rail anchor
Rail shoulder
Fish plate
Tie plate
Plastic / Rubber parts
Brake shoe
Steel rail
New wood sleeper
Quotation necessity ( the more, the better )
Drawing with full size ( front / side section / hole )
Hole: round / oval
Material : 45# / 50#
Surface Treatment
Order quantity
