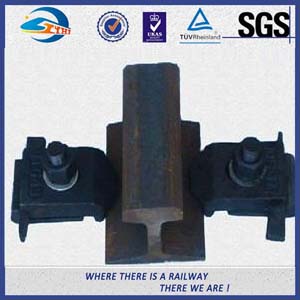

Track Railway Heavy Steel Crane Rail Standard UIC60 12 - 25m
- Product Number
- Crane Rail
- Quantity：
- 10000
- Rrice：
- ￥10000.00
- Time：
- 2015/5/22 13:56:18
Detailed Product Description
|
Material: |
900A / 1100 / R260 |
Surface: |
Plain (oiled) |
|
Application: |
Track / Railroad / Railway |
Standard: |
UIC860 |
Track Railway Heavy Steel Crane Rail Standard UIC60 12 - 25m
Commercial Name: Steel Rail
Brand: SUYU
HS CODE 73021 0000
Technical Parameter Table of Rail
|
Standard: UIC860 |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
UIC50 |
70 |
152 |
125 |
15 |
50.46 |
900A/1100 |
12-25 |
|
UIC54 |
70 |
159 |
140 |
16 |
54.43 |
900A/1100 |
12-25 |
|
UIC60 |
74.3 |
172 |
150 |
16.5 |
60.21 |
900A/1100 |
12-25 |
Technical Parameter Table of Material
|
Material |
Chemical composition |
Mechanical Properity |
||||||
|
C |
Si |
Mn |
P (max) |
S (max) |
Tensile strength |
Elongation |
Hardness |
|
|
% |
% |
% |
% |
% |
Mpa |
% |
HB |
|
|
900A |
0.6-0.8 |
0.1-0.5 |
0.8-1.3 |
0.04 |
0.04 |
≥880 |
≥10 |
240-270 |
|
R260 |
0.6-0.82 |
0.13-0.6 |
0.65-1.25 |
0.025 |
0.025 |
≥880 |
≥10 |
260-300 |
Drawing
The Process Flow Chart of Steel Rolling And Quality Control
1. Raw material
2. Heating
3. High-pressure water dephosphorization
4. Primary rolling
5. High-pressure wind dephosphorization
6. Precision rolling
7. Saw cutting
8. Pre-bending
9. Air cooling —the test of chemical composition and mechanical properties
10. Vertical straighting
11. Ultrasonic detection
12. Drilling and milling
13. Heat treatment
14. Inspection and analysis
15. Labeling
16. Packing
17. Storage
Quality Testing Machine
1. CS Analyzer
2. Brienll hardenss tester
3. Impact testing machine
4. High magnification metallographic microscope
5. Tensile testing machine
6. Drop-testing machine
7. Precise elemental analyser
8. Digital ultrasonic flaw detector
Rail System
|
Fastener system |
Model |
Quantity |
Material |
|
Clamp |
SKL14 |
4pcs/set |
60Si2MnA |
|
Screw spike |
SS25 |
4pcs/set |
35# |
|
Washer |
ULS7 |
4pcs/set |
Q235 |
|
Insulator |
/ |
4pcs/set |
PA66 |
|
Tie plate |
/ |
2pcs/set |
EVA |
|
Sleeve |
/ |
4pcs/set |
HDPE |
Package: steel belt;
Delivery time: 7-working days after getting payment.
Sale Range
1. Rail fastening system
2. Dog spike / Screw spike
3. Bolt set
4. Elastic clamp
5. Rail anchor
6. Rail shoulder
7. Fish plate
8. Tie plate
9. Plastic / Rubber parts
10. Brake shoe
11. Steel rail
12. New wood sleeper
